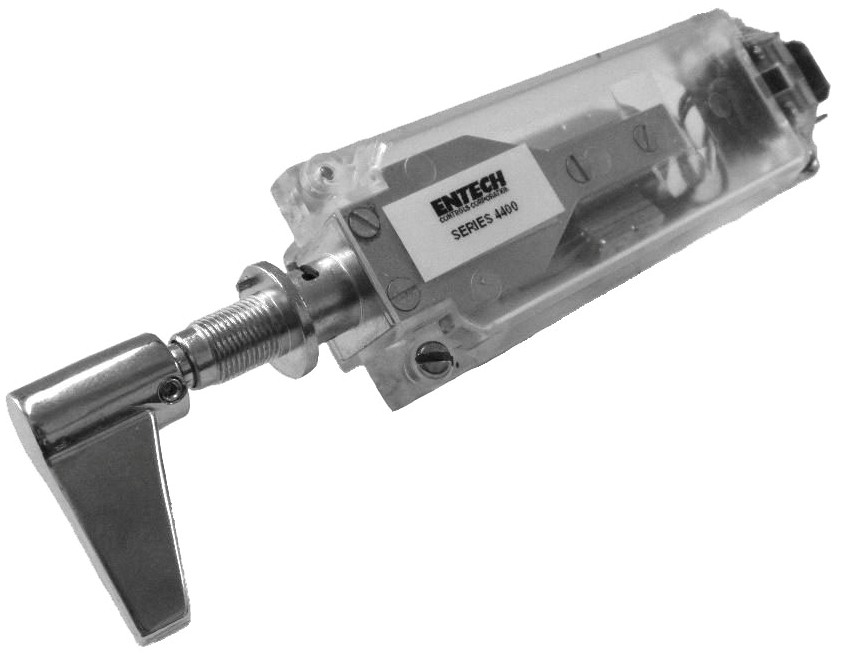

Series 4400 - Lever Controller Switch

This controller series was developed primarily for light and heavy railroad and mass transit signal applications. In addition, with the multiple switching actions and contact functions, these controllers can be applied in a wide range of other industries. Some of these are: Hoist control, Aircraft ground support equipment, Process/Flow control panels and specialized industrial systems.

Some of the main features of the Series 4400 switch include:

»Extremely rugged construction insures extended life under demanding conditions
»Pre-wired quick disconnect couplers insure rapid switch installation
»Up to 4 independent functions in one switch permit high density panel circuits
»Illuminated LED switches with Blue, Red, Green, Amber, and White indicators
»High impact polycarbonate dust covers for long term reliability
»Solid nickel plated brass bushings, shafts and frame assemblies
»Optional open back hard wiring construction for tight locations
»Multiple circuits, up to 2 SPST, on each function with the standard dust cover
»Mix latching and momentary functions on the same "controller"
»Optional blocking action flag pins and safety blocking caps are available
»Adaptable to a variety of panel thicknesses or Grid Mosaic Tile structures
»Custom low smoke, low halogen content cable assemblies to mate with switch connectors available in any length and termination
