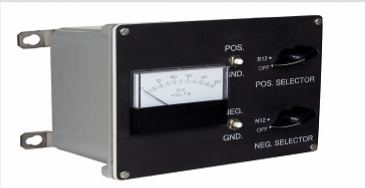

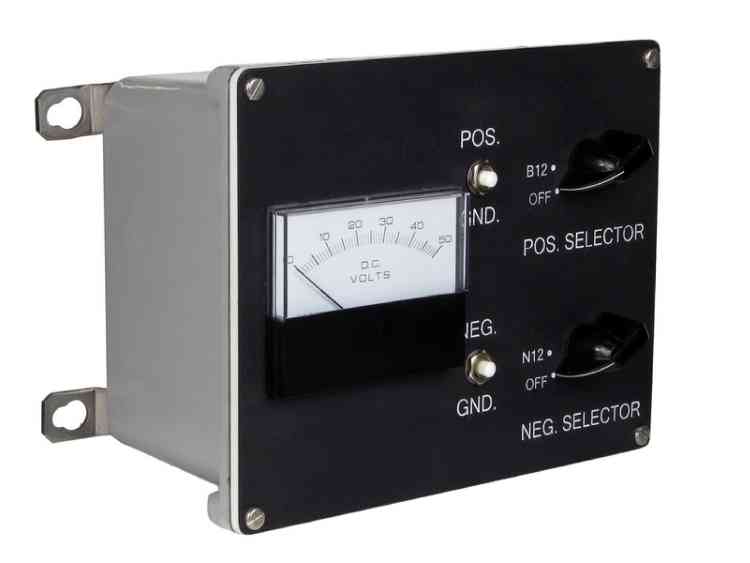

Ground Detector Equipment (Series 8000)

Accessory monitoring devices include a variety of Ground Detector Box configurations. Contact factory for pricing on specific requirements.

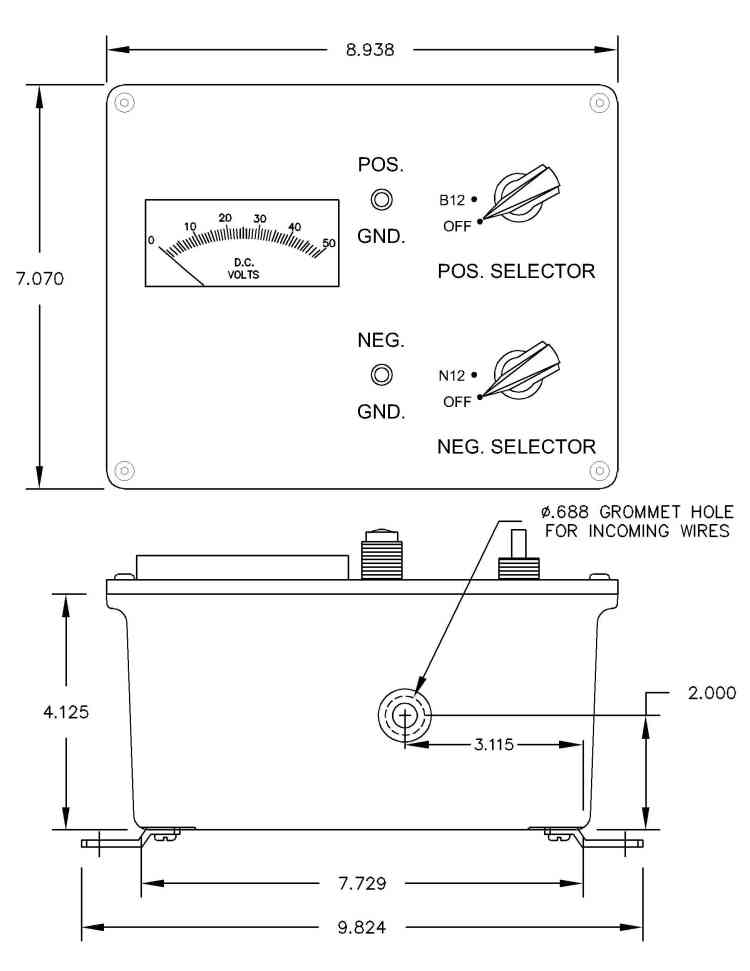

Exterior Box
  • Molded gray fiberglass polyester with stainless steel mount feet to the rear

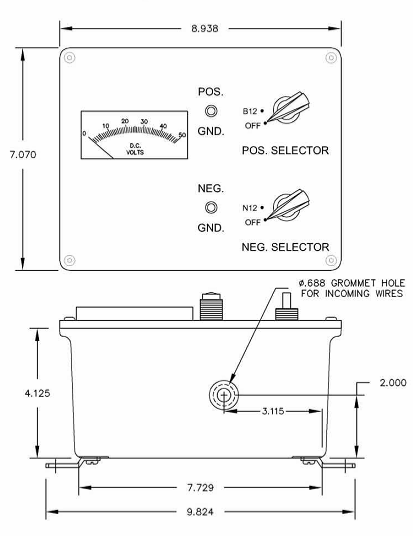

  • Dimensions: 8"l x 6.12"w x 4.13"d
  • Operating temperatures between 130°C and -40°C (266°F to -40°F)

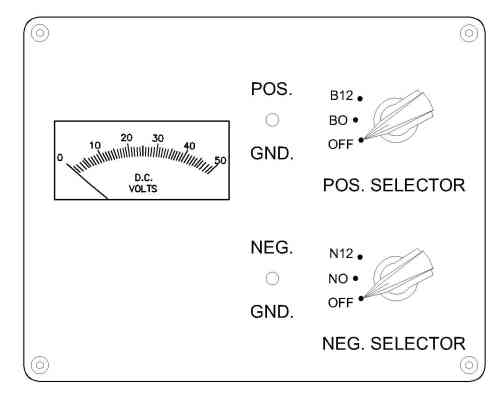

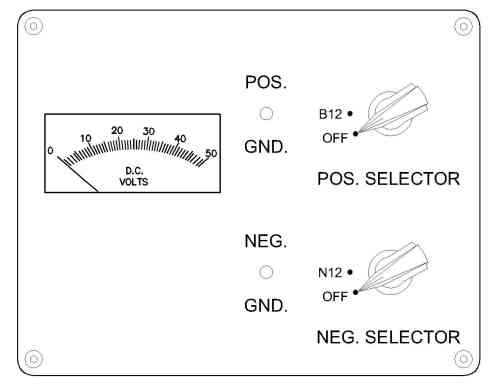

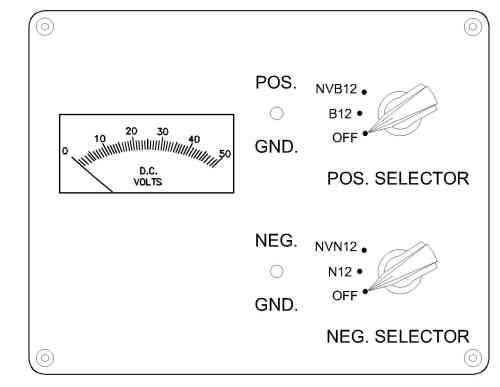

Faceplate
  • Custom engraved

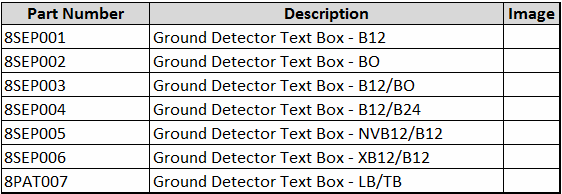

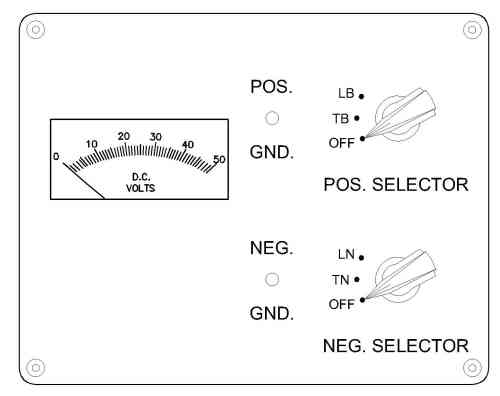

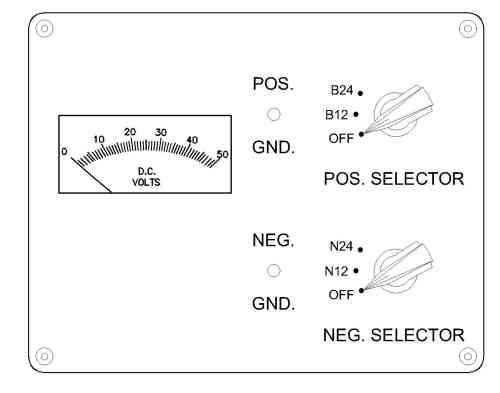

  • Various positions available; B12, BO, B12/BO, B12/B24, NVB12/B12, XB12/B12, and LB/TB
Panel Meter
  • 50V DC industrial styled with high impact plastic case
  • Accuracy: ±2% full scale value
  • Resistance: ±15%
Rotary Switch
  • 6-position, single pole, single deck, 15 Amps, 120 VAC
  • Rotor Contact: silver alloy
  • Shaft: 303 stainless steel
  • Minimum 6,000 operations
Push Button Switch
  • General purpose phenolic
  • Temperature Rating: 105°C Std (221°F)
  • Flammability Rating: UL94HB
  • NO/NC Terminals & Moving Blade: Brass
