» Route Control Units
» Switch Machine Units
» PDF Datasheet

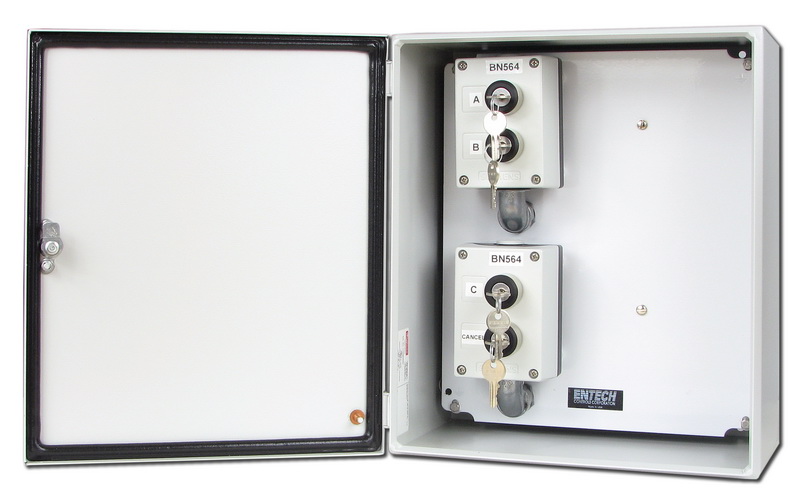

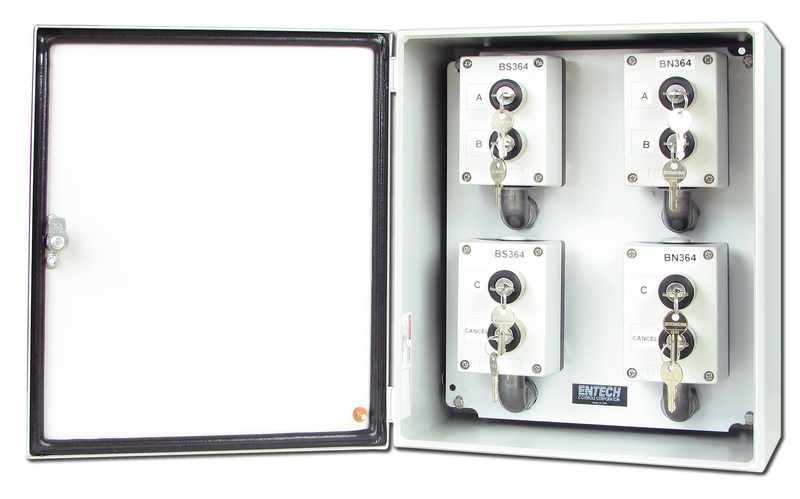

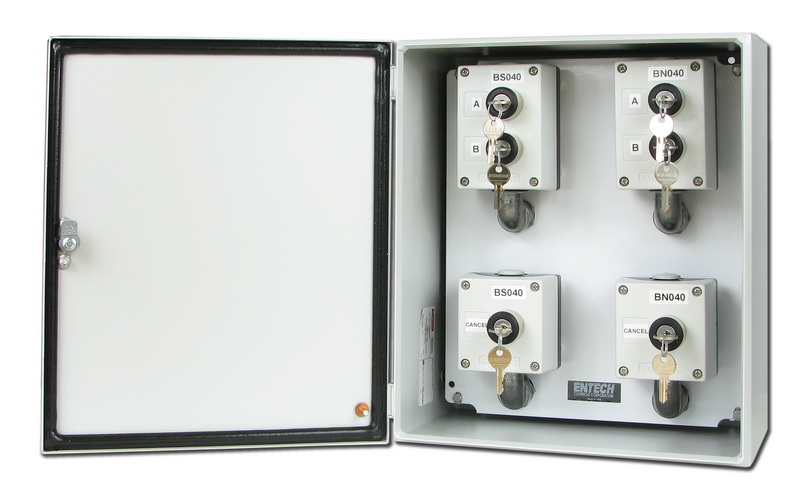

Route Control Units

Wayside and Station Platform Control Equipment can be custom configured for specific circuit requirements tailored to any project. Wall or pole mounting versions are available.

Exterior Box
  • NEMA Type 4 and 12, 1.4mm (16 gauge steel)
  • Dimensions: 13.78"h x 11.81"w x 7.87"d
  • Exterior box key lock for entry
  • Fastening holes in back of body for direct mounting or optional external mounting brackets
Interior Box
  • Climate-proof KTW24 in accordance with DIN 50017
  • Compliant with IEC 60529, IP66
Interior Panels
  • 12 gauge steel with white polyester powder paint
  • Dimensions: 13.04"h x 11.07"w
Key-Operated (Ronis Type) Switch
  • 2 position, round
  • Key removable in "Off" position, "On" position or both (specify type when ordering)
Contact Block
  • 1 Normally Open contact (N/O), 1 Normally Closed Contact (N/C), or both
  • Rated operational current 50/60 Hz, AC-12, 24V-400V, 10 Amp
  • Rated operational current DC-12, 24V, 10 Amp
Rated Mechanical Operating Cycles
  • 300,000 / mechanical throw 50°
**Specify all specific internal switch box or boxes and any external enclosure markings required, including letter sizes and font colors when ordering. Black letters on yellow is standard for the enclosure, while black letters on white is standard for internal console.
Railroad Control Equipment
Custom Switches

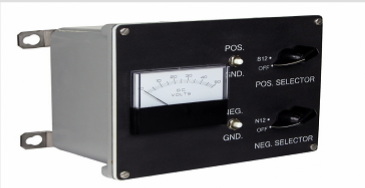

Ground Detector Equipment

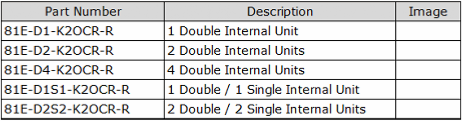

81E-D1S1-K2OCR-R
1 Double / 1 Single Interal Unit
Control Consoles/Panels
Switches
Controller Switches
Rack Mounted Panels
81E-D1S1-K2OCR-R

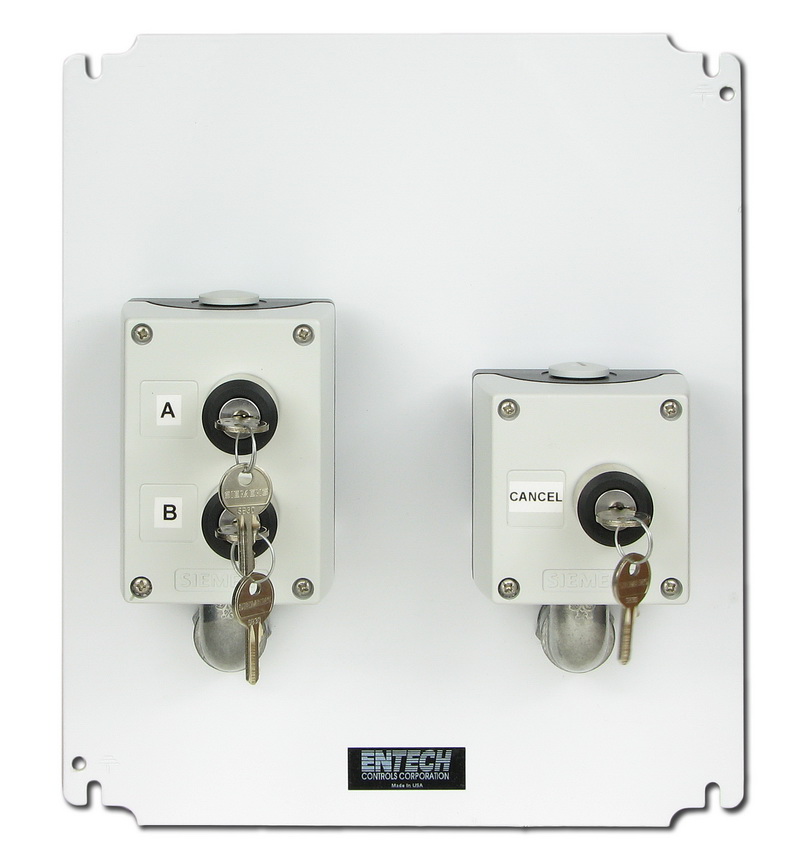

Internal Console
See Reverse Side

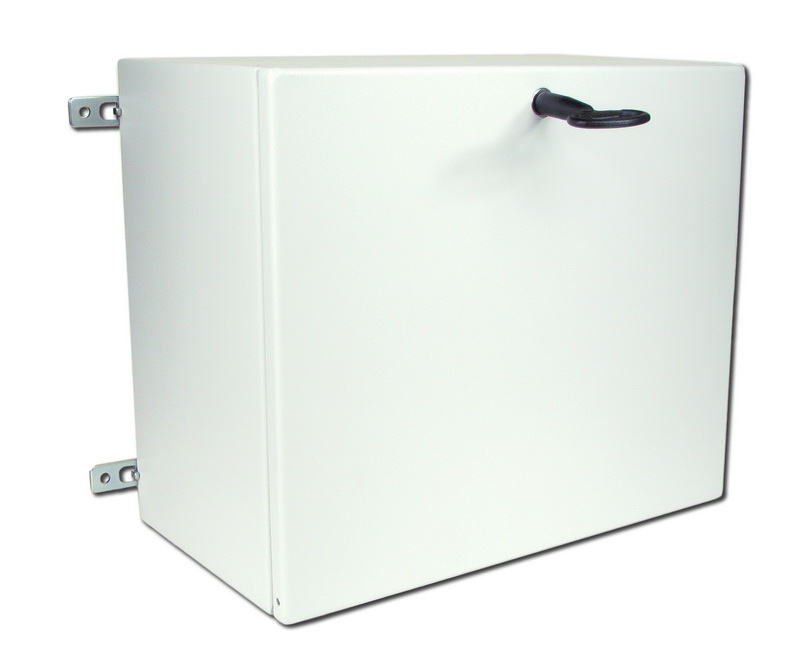

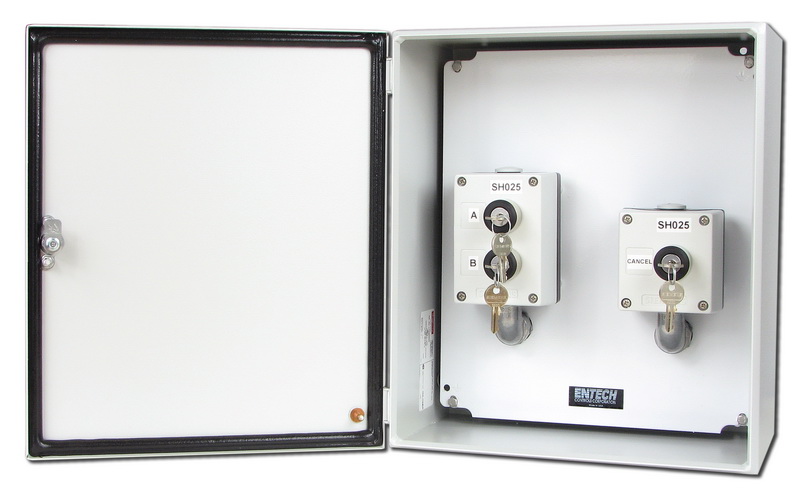

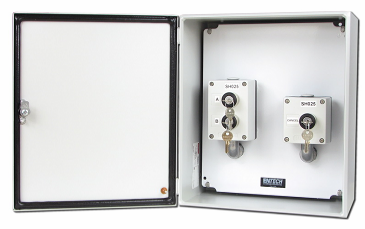

Exterior Enclosure - Front
See Reverse Side
Support Equipment
Accessory Control Panels
Custom Consoles
Part Manufacturing
Control Units
Entech Controls Corporation | 8 Tower Circle West | Ormond Beach, FL 32174
Tel: (386) 672-7335 | Fax: (386) 672-7233

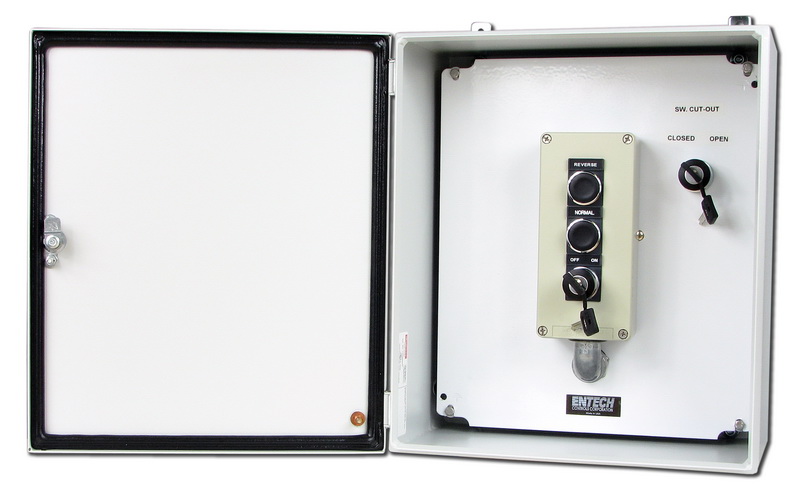

Switch Machine Units

Similar to the Route Control Units in circuits, this control unit has been widely used for controlling the direction of traffic.

Exterior Box
  • NEMA Type 4 and 12, 1.4mm (16 gauge steel)
  • Dimensions: 13.78"h x 11.81"w x 7.87"d
  • Exterior box key lock for entry
  • Fastening holes in back of body for direct mounting or optional external mounting brackets which can be installed in a horizontal or vertical positions
Interior Box
  • Drilled Die Cast Zinc
  • NEMA Type 4, 13
Contact Block
  • 1 Normally Open contact (N/O), 1 Normally Closed Contact (N/C), or both
  • Silver Alloy (Ag/Ni), 600V, 10Amp
Interior Panel
  • 12 gauge steel with white polyester powder paint
  • Dimensions: 13.04"h x 11.07"w
Key-Operated Switch
  • 2 position, round
  • Key removable in "Off" position, "On" position or both (specify type when ordering)
  • NEMA 1/2/3/4/4X/13
Push Button Switch
  • Round chromium-plated metal.
  • IP 65-NEMA 4X et 13
Custom labeling
  • Interior & Exterior available
82ET1-2PBORBK-2K2OB
Entech Controls Corporation | 8 Tower Circle West | Ormond Beach, FL 32174
Tel: (386) 672-7335 | Fax: (386) 672-7233
Entech Controls Corporation | 8 Tower Circle West | Ormond Beach, FL 32174
Tel: (386) 672-7335 | Fax: (386) 672-7233 | entechsales@cfl.rr.com

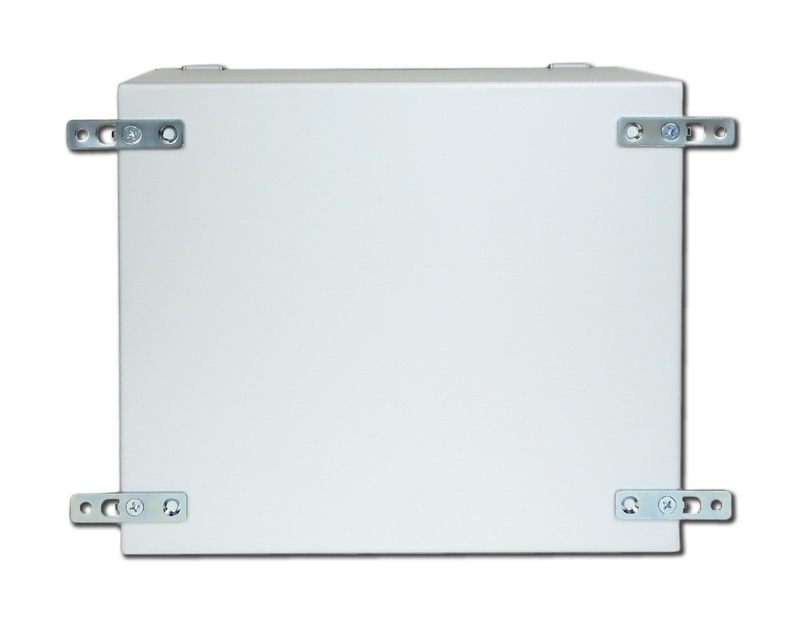

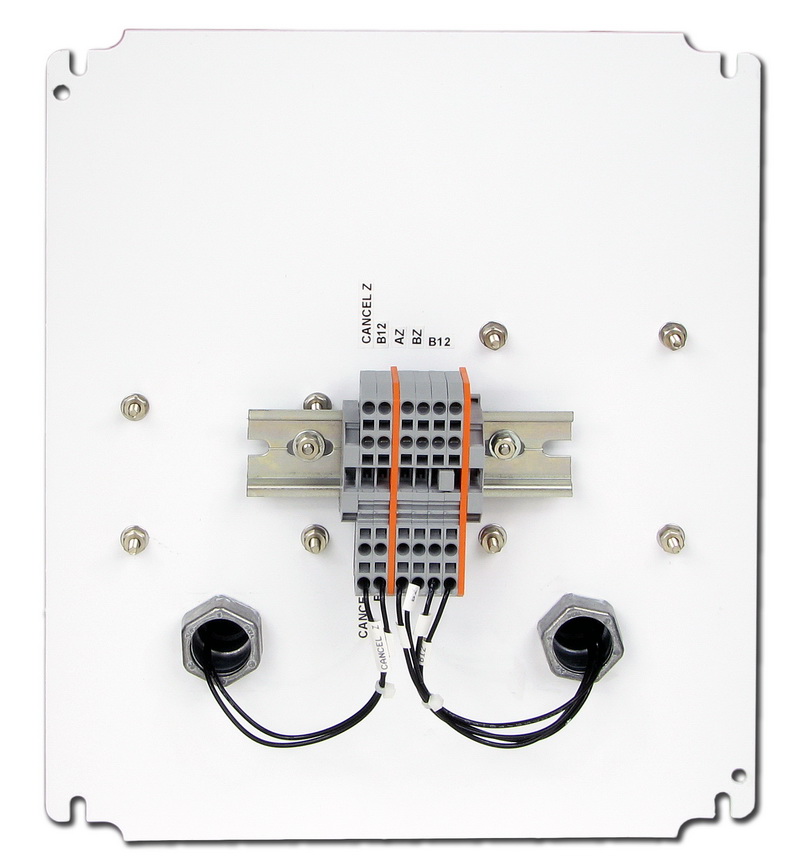

Exterior Enclosure - Rear
Exterior Enclosure - Front
