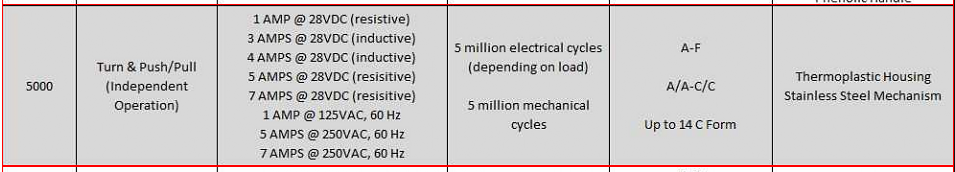

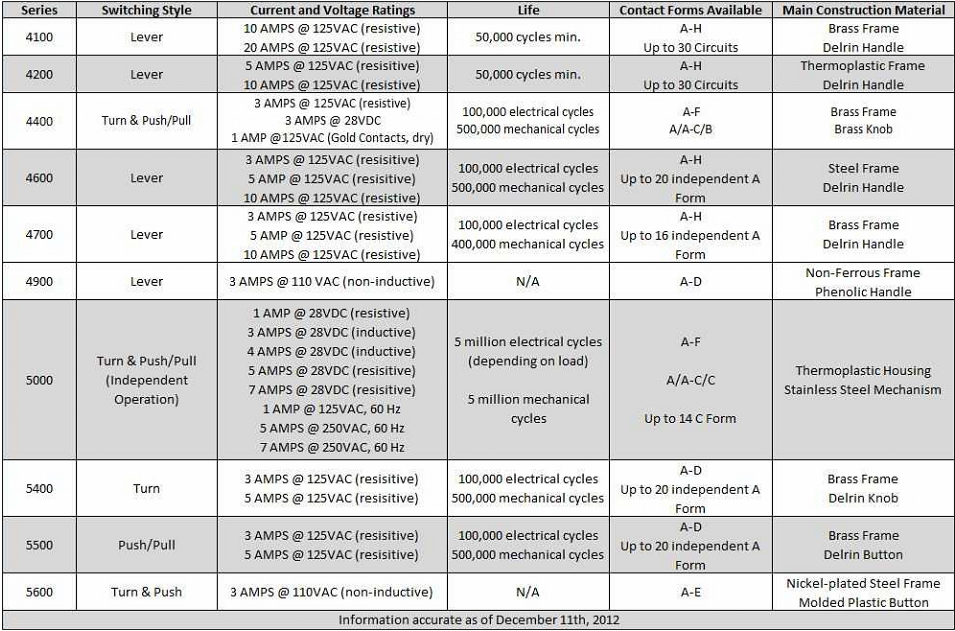

Entech Controls offers a large variety of switches for almost any industrial application. The table below shows our various switch Series and their operating characteristics. Simply click on the Series you would like to learn more about. There is also a brief description of each Series at the bottom of the page. As always, feel free to contact us with any questions.

This rugged series has been widely used in Electric Power Plants, Machine Tools, Telephone Test Equipment, Railroad Signaling and Process Control Panels. The combination of a solid brass toggle cam and stainless steel roller bearing insures long and reliable mechanical service. Large silver contacts insure an electrical capacity well beyond published ratings.
Learn more about the Series 4100

This series was designed as a moderate duty version of our Series 4100 type devices. It has been widely used in Power Plants, Communication & Broadcasting Equipment, Alarm Systems, Ground Support Panels, Machine Tools, Telephone Test Equipment, Raildroad Signaling and Process Control Panels. The solid brass toggle cam and stainless steel ball bearings insure a positive detent action. Large solid silver contacts insure a long electrical life.
Learn more about the Series 4200

This controller series was developed primarily for light and heavy railroad and mass transit signal applications. In addition, with the multiple switching actions and contact functions, these controllers can be applied in a wide range of other industries. Some of these are: Hoist control, Aircraft ground support equipment, Process/Flow control panels and specialized industrial systems.
Learn more about the Series 4400

This compact Series 4600 is a durable cam lever switch. This frame style incorporates a basic three position switch with the center position always locking. Positions 1 and 2 may be locking or non-locking, or "no throw", if only one active position is to be used. More rugged than the Series 4700 family, these switches are specified extensively in Custom Test Equipment, Broadcasting Consoles, Traffic Control Systems and Industrial Electrical/Electronic Control Panels.
Learn more about the Series 4600

The Entech Series 5400 is a High Contact Density Family of turn switches. Either single or double sets of contact spring pile-ups may be mounted on both sides of the frame resulting in extensive circuit switching capability. This frame assembly is available in either 45° or 90° maintained (latching) action. Please contact the factory for further details and the circuits that can be used with these devices.
Learn more about the Series 5400

The Entech Series 5500 is a High Contact Density Family of push button switches. Either single or double sets of contact spring pile-ups may be mounted on both sides of the frame which provides extensive circuit capability. The momentary action is push only, pull only, or push/pull. This Series can be supplied with an integral LED in the shaft that is front panel replaceable.
Learn more about the Series 5500

A long frame switch, particularly useful where panel space is limited, the Series 5600 provides reliable service for a variety of applications in communication, signaling and instrument apparatus.

Learn more about the Series 5600

Some particular switches are difficult to place into a specific category. Here are just a few of the other switches we are capable of producing.

Learn more about our miscellaneous switches
