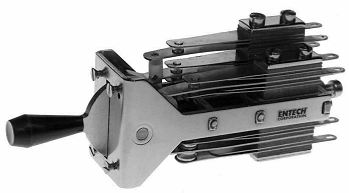

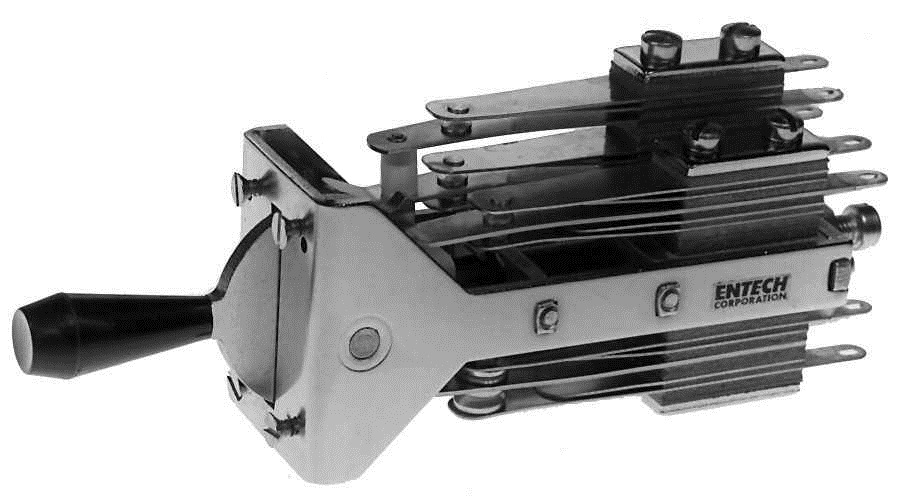

Series 4100 - Lever Switch

This rugged series has been widely used in Electric Power Plants, Machine Tools, Telephone Test Equipment, Railroad Signaling and Process Control Panels.

The combination of a solid brass toggle cam and stainless steel roller bearing insures long and reliable mechanical service. Large silver contacts insure an electrical capacity well beyond published ratings.

Some of the main features of the Series 4100 switch include:

»Heavy Duty Construction
»Up to 20 AMP Solid Silver Contacts
»Thousands of Circuit Combinations
»Locking and Non-locking versions
»Custom levers for Remote Operation

»Optional Rotary Operation
»Adjustable operating lever pressure
»Available in 2, 3, 4 or 5 position action
»Up to 30 Circuits (S.P.S.T.) on one switch
»Optional Screw Terminal Connection

Important information required to provide an accurate quote:

1. Contacts required by basic form letter (A, B, etc.)
2. Location of the contacts on the switch by position, number and if on left or right side
3. Contact ratings (may be mixed on the same switch)
4. Lever action in both position 1 and position 2 (Maintained or Momentary)
5. Cam Code (1, 2, 3, etc.)

See the general characteristics of multiple contact switches page for more detailed information.
