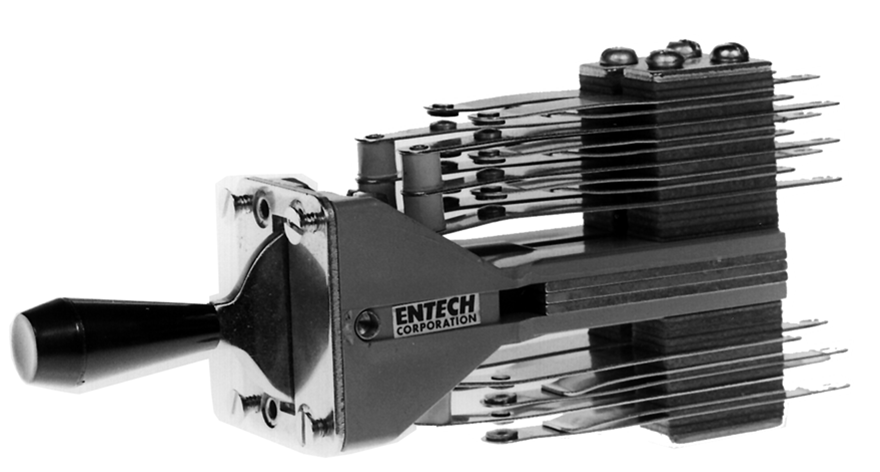

Series 4200 - Lever Switch

This series was designed as a moderate duty version of our Series 4100 family of switches. They have been widely used in Power Plants, Communication & Broadcasting Equipment, Alarm Systems, Ground Support Panels, Machine Tools, Telephone Test Equipment, Railroad Signaling and Process Control Panels. The solid brass toggle cam and stainless steel ball bearings insure a positive detent action. Large solid silver contacts insure long life.

Some of the main features of the Series 4200 switch include:

»Medium Duty Construction
»Thousands of Circuit Combinations
»5 AMP or 10 AMP Silver Contacts
»Steel Reinforced Molded Frame for Additional
  Insulation and Corrosion Resistance
»2 and 3 Position Lever Action is Standard

»Custom 4 and 5 Position Levers Available
»Locking and Non-Locking Versions
»Up to 30 Circuits (S.P.S.T.) on One Switch
»Extra Positive Lever Detent Mechanism

Important information required to provide an accurate quote:

1. Contacts required by basic form letter (A, B, etc.)
2. Location of the contacts on the switch by position, number and if on left or right side
3. Contact ratings (may be mixed on the same switch)
4. Lever action in both position 1 and position 2
5. Cam Code (1, 2, 3, etc.)
