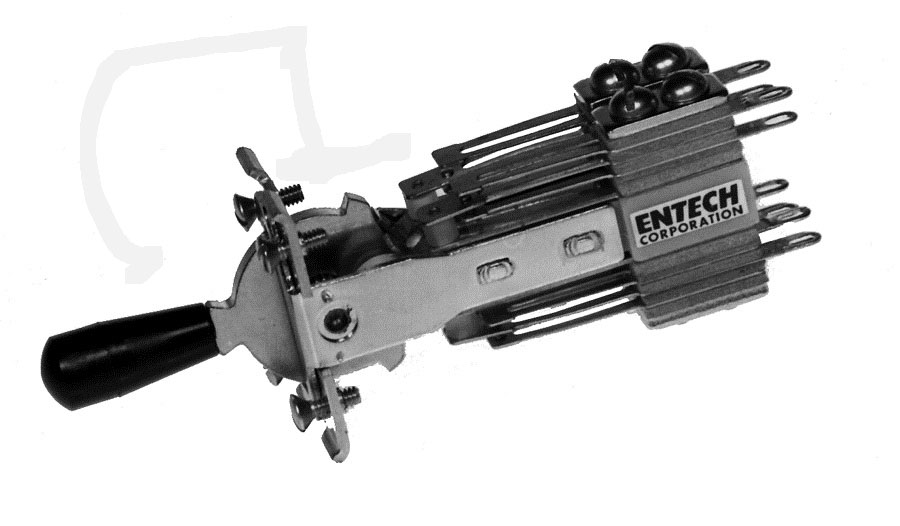

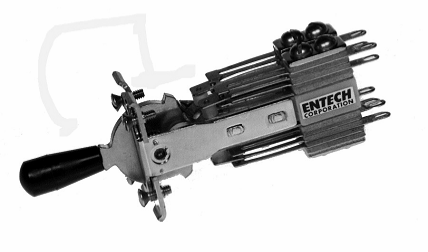

Series 4600 - Lever Switch

Some of the main features of the Series 4600 switch include:

»Compact size with full circuit flexibility (up to 20 independent A Form circuits per switch)
»Choice of two different mounting hole centers
»Optional bifurcated contacts available - for redundncy in critical low voltage/cycle applications
»Optional hard gold contacts for dry circuit applications
»Mount in panel thickness up to 3/16" (.093")

Important information required to provide an accurate quote

1. Series 4610 or 4650
2. Contacts required by basic form letter (A, B, etc.)
3. Location of the contacts on the switch by position, number and if on left or right side
4. Contact ratings (may be mixed on the same switch)
5. Lever action in both position 1 and position 2
6. Cam Code (Z1, Z2, Z3, etc.)

See the general characteristics of multiple contact switches page for more detailed information.
