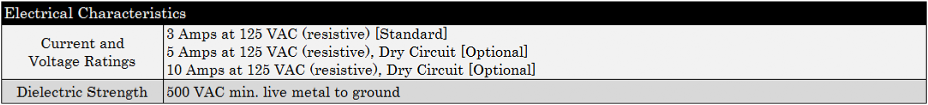

Series 4600 - Electrical Data

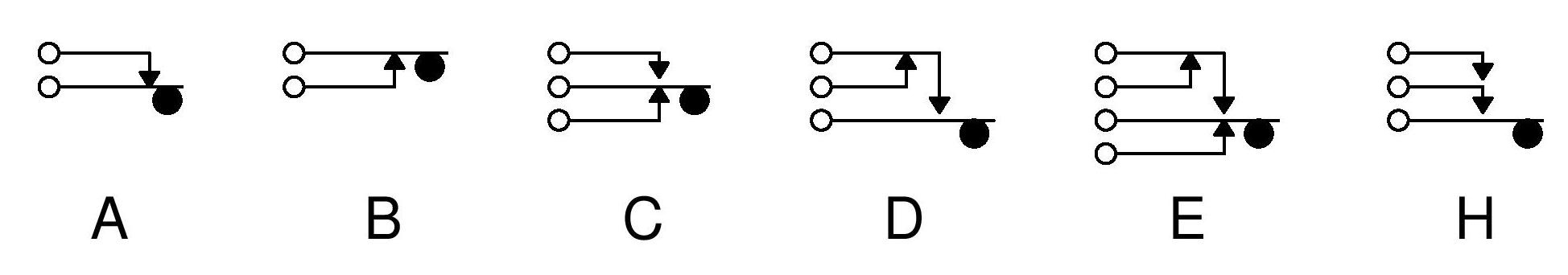

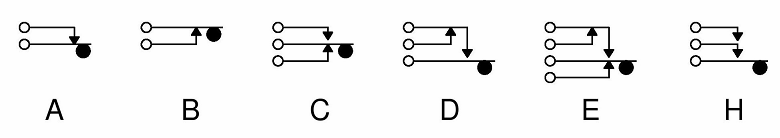

Contact Forms Available

Multiple combinations of contact forms may be stacked in each of the four operating quadrants of the switch

a. All contact forms are shown unoperated. In a three position switch, the contacts are unoperated when the lever is in the neutral position. Since a two position switch does not have a neutral (0° position), the contacts in switch position 2 are considered unoperated when the lever is in position 1. The contacts in switch position 1 are unoperated when the lever is in position 2.

b. Contact springs may be adjusted for a required sequence of action (progressive action, break before make, and make before break).

c. Forms F and G may be used only on certain three position switches since a neutral and two operated positions are required.
