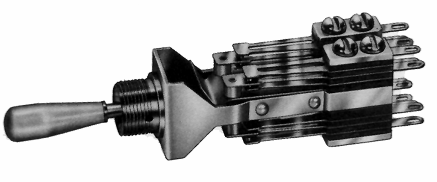

Series 4700 - Lever Switch

Some of the main features of the Series 4700 switch include:

»Up to 16 independent A Form circuits per switch
»High Density Circuit Capability
»Contact Ratings from dry circuit to 10 Amps at 125 VAC

»Rugged brass frame with anti-pull bushing design
»Mounts in panels from .050" to .125"
»Optional bifurcated contacts available for redundancy in critical low voltage/cycle applications

Important information required to provide an accurate quote

1. Contacts required by basic form letter (A, B, etc.)
2. Location of the contacts on the switch by position, number and if on left or right side
3. Contact ratings (may be mixed on the same switch)
4. Lever action in both position 1 and position 2 - Locking or Non-Locking

See the general characteristics of multiple contact switches page for more detailed information.
