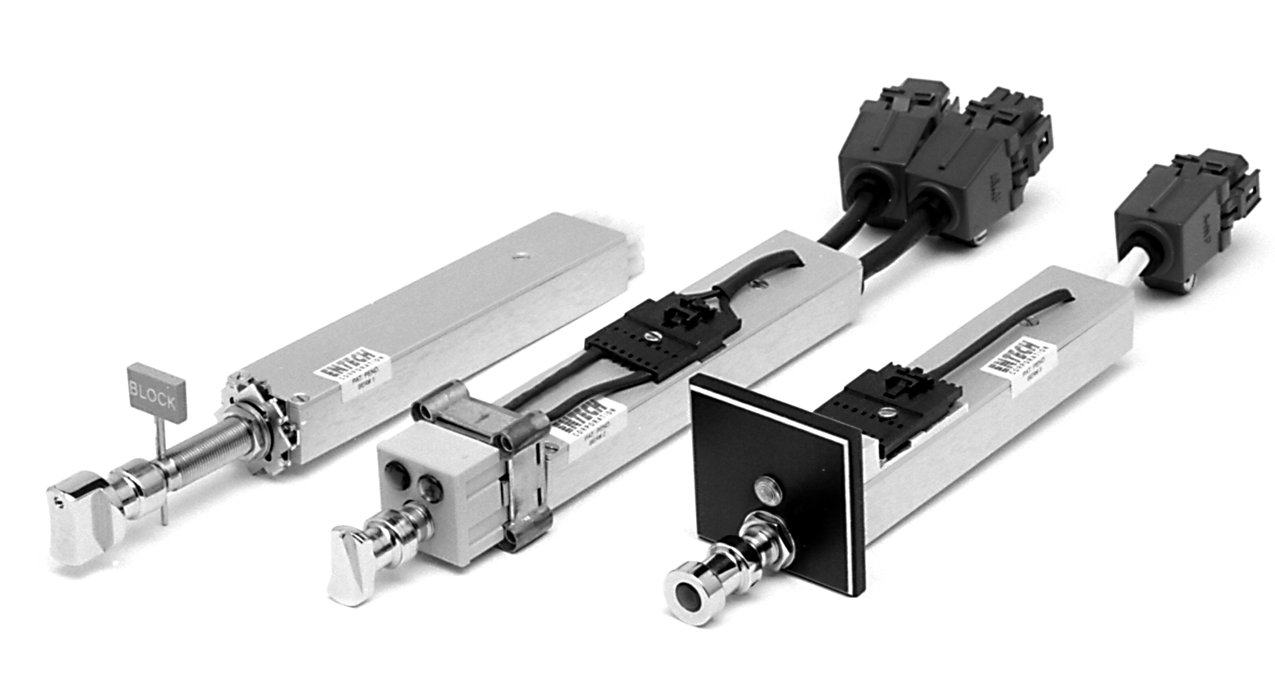

Series 5000 - Push, Pull & Turn Switch
Primarily designed to fit in 24 mm x 24 mm grid and tile systems, this Series is also used extensively on rail control panels that are not in grid systems. They offer a higher mounting density capability due to their reduced height profile. Up to 24 independent circuits are available in this line. All devices are "plug couple" to facilitate easy replacement in the system.
Primarily designed to fit in 24 mm x 24 mm grid and tile systems, this Series is also used extensively on rail control panels that are not in grid systems. They offer a higher mounting density capability due to their reduced height profile. Up to 24 independent circuits are available in this line. All devices are "plug couple" to facilitate easy replacement in the system.
Railroad Control Equipment
Custom Switches
Ground Detector Equipment
Some of the main features of the Series 5000 switch include:
»New large LED illuminated knobs/multicolored lenses
»Heavy duty - low distortion construction/stainless steel mechanism
»High panel density/switch and indicators in single 24mm tile
»Low unit cost/superior quality and structural design
»Greatest reliability/5 million cycles
»Easy serviceability/LEDs replaceable from the front of grid/panel
»Unparalled circuit flexibility/up to 14 Form C contacts in extended enclosure
»Push or Push/Pull functions are also available in a solid aluminum housing
»New large LED illuminated knobs/multicolored lenses
»Heavy duty - low distortion construction/stainless steel mechanism
»High panel density/switch and indicators in single 24mm tile
»Low unit cost/superior quality and structural design
»Greatest reliability/5 million cycles
»Easy serviceability/LEDs replaceable from the front of grid/panel
»Unparalled circuit flexibility/up to 14 Form C contacts in extended enclosure
»Push or Push/Pull functions are also available in a solid aluminum housing
Click image to enlarge
