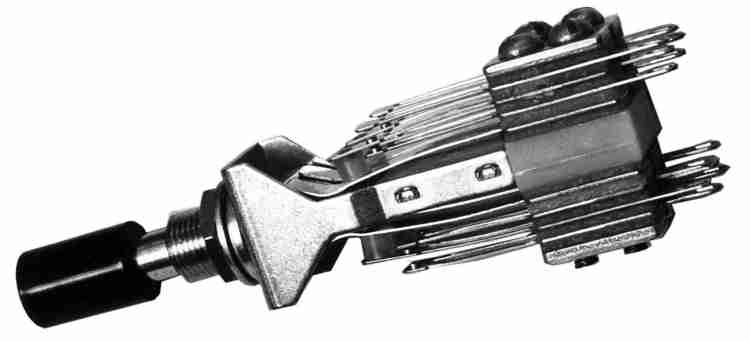

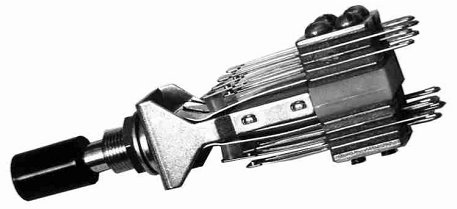

Series 5500 - Push & Pull Switch

Looking for a Turn version of this switch? Click here.

Some of the main features of the Series 5500 switch include:

»High density circuit capability - up to 20 independent A Form circuits per switch
»Contact ratings from dry circuit to 5 Amps at 125 VAC (resistive)
»Rugged brass frame with anti-pull-through bushing design
»Mounts in paenls from .050" to .250" and a variety of Mosaic Grid & Tile Systems
»Optional bifurcated contacts available for redundancy in critical low voltage/cycle applications

Important information required to provide an accurate quote

1. Contacts required by basic form letter (A, B, etc.)
2. Location of the contacts on the switch by position, number and if on left or right side
3. Contact ratings (may be mixed on the same switch)
4. Optional LED indicator - red, green, blue, white*
5. Button action - SEE TABLE ABOVE

See the general characteristics of multiple contact switches page for more detailed information.
