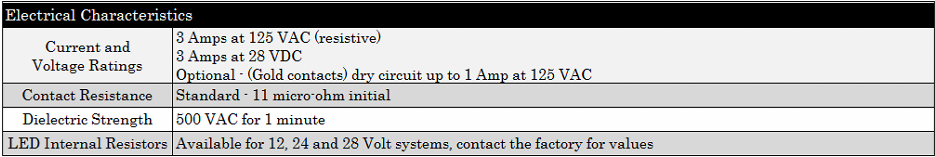

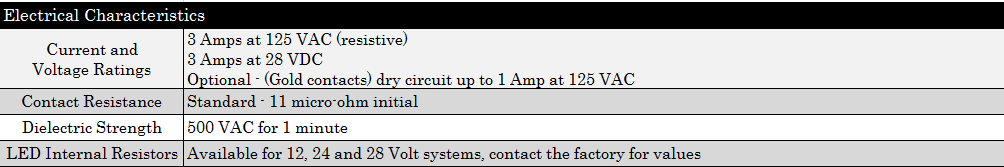

Series 4400 - Electrical Data

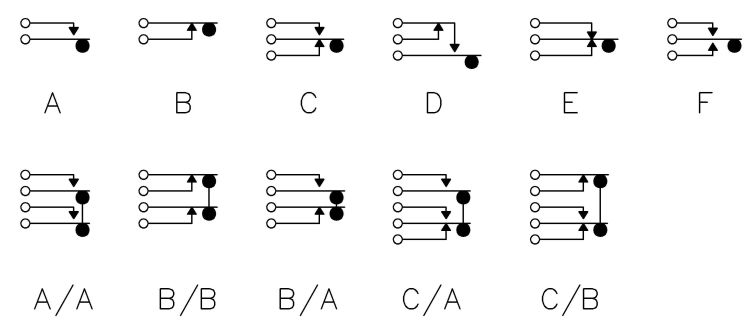

Contact Forms Available

The most common contact arrangements are shown, but other circuits are available for all operating functions.

When specifying the circuit required, use the numbers 1 to 6 or 21 to 25. The same circuit is supplied in all operating models. If different circuits are required for different operating positions on the same switch, ex. Push-1 Form A & Pull-1 Form C, contact the factory.
